Cutters; Pipe and Rod, Page 6

Page 6

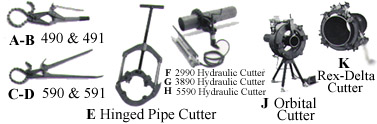

Examples for Table

RECOMMENDED CUTTING CAPACITIES
FOR WHEELER-REX CUTTERS


11/2" (40mm)	ABC D	ABC D **	ABC D
2" (50mm)	ABC DEF	ABC DEF **	ABC DEF	ABC DF		AEF G	AEF G	EF G		E
3" (75mm)	ABC DEF	ABC DEF **	ABC DEF	ABC DF		AEF G	AEF G	EF G		E
4" (100mm)	ABC DEFG	ABC DEF	ABC DEFG	ABC DF	ABC DF	EFG HJ	EFG HJ	EFG HJ	G	E K	K **
6" (150mm)	ABC DEFG	ABC DEF	E FG	ABC DFG	ABC DF	EFG HJ	EG HJ	EG HJ	G	E K	K **
8" (200mm)	EFG H	E FG	EF GH	ABC DFG	FGH	EGHJ	EGHJ	EGHJ	H	E K	K **
10" (250mm)	EF GH	EG	E GH	ABC DFGH	GH	EGHJ	EGHJ	EGHJ	H	E K	K **
12" (3OOmm)	EG H	EG	EG H	ABC DFGH	GH	EGHJ	EHJ	EHJ		E K	K **
14" (350mm)	G H	G	G H	AF GH	GH	H	H	H		K	K **
15" (375mm)	G H	G	G H	AF GH	GH	H	H	H		K	K **
16" (400mm)			GH	GH	GH	H	H	H		K	K **
18" (450mm)			H	GH	GH	H	H	H		K	K **
20" (500mm)				GH	GH	H	H	H		K	K **
24" (600mm)				GH	GH					K	K **
36" (9OOmm)				H	H **
42" (1050mm)				H	H
48" (1200mm)					H **
60" (1500mm)					H **

The cement-lining of water main is not shattered, split or excessively damaged when cuts are made.

** Special instructions required.
