WHEELER-REX HYDRAULIC CUTTERS

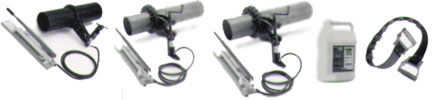

Wheeler-Rex Hydraulic Cutters are the solution to cueing larger diameter pipe: for Cast Iron, Tile, and Concrete Pipe. Like the hand operated "snap" cutters, hydraulic cutters are not rotated around pipe. Their remotely operated hydraulic pumps provide the required power. Aminimum clearance is needed towrap cutterchain around pipe, to engage it in the cutter jaws. Complete with pump, hose and case.

2990 WHEELER PIPE CUTTER
All models cut 2"-6" (50-1 somm) ASA class 22 Cl Water Main, and 2"-6" (50-150mm) Service wt. or XH Soil Pipe in addition to the sizes and materials listed by each model.

2990-6 2"- 6" (50-150mm) STD & XH Soil Pipe, and Tile 77 lbs.

2990-8 2"- 8" (50-200mm) STD, 2"-8" XH Soil Pipe; and Tile 80 lbs.

2990-10 2"-10" (50-250mm) STD, 2"-8" XH Soil Pipe; and 10" Tile 82 lbs.

2990-12 2"-10" (50-300mm) STD, 2"-8" XH Soil Pipe; and 12" Tile 84 lbs.

2990-15 2"-10" (50-375mm) STD, 2"-8" XH Soil Pipe; and 15" Tile 86 lbs.

3890 WHEELER HEAVY DUTY HYDRAULIC PIPE CUTTER
All models cut 4"-12" (100-300mm) ASA class 22 CI water Main, 4"-10" (100-250mm)
ASA CLASS 26 CI Water Main, in addition to the sizes and materials listed by each model.

3890-12 4"-12" (100-300mm) STD; XH Soil Pipe; Tile and Concrete 152 lbs.

3890-15 4"-15" (100-375mm) STD; XH Soil Pipe; Tile and Concrete 159 lbs.

3890-18 4"-18" (100-450mm) STD; XH Soil Pipe; Tile and Concrete 163 lbs.

3890-24 4"-24" (100-600mm) STD; XH Soil Pipe; Tile and Concrete 168 lbs.

5590 WHEELER SUPER HYDRAULIC PIPE CUTTER
All models cut 6"-18" (150-4somm) ASA class 26 CI Water Main, in addition to the following sizes and materials listed by each model.

5590-18 6"-18" (150-450mm) ASA Class 26 and 22 Water Main;
Tile and Concrete 202 lbs.

5590-20 6"-18" (150-450mm) ASA Class 26 and 6"-20" (150-500mm)
Class 22 Water Main; 6"-20" (6-500mm) Tile and Concrete 212 lbs.

5590-24 6"-18" (150-450mm) ASA Class 26 and 6"-20" (150-500mm)
Class 22 Water Main; 6"-24" (150-500mm) Tile and Concrete 224 lbs.

5590-36 6"-18" (150-450mm) ASA Class 26 and 6"-20" (150-500mm)
Class 22 Water Main; 6"-36" (150-9OOmm) Tile and Concrete 269 lbs.

HYDRAULIC PUMP FLUID
(Wheeler Hydraulic Cutter guarantees valid only when Hydroyl fluid is used.)
3801 1 Qt 2 lbs.
3804 1 Gal 8 lbs.
For ease in handling large quantities, order by carton (12 qts. or 6 gallons per carton).

PIPE CLEANER (Descaler)
A versatile scraper for removing mud and scale from pipe surfaces. Makes for faster cutting and better repairs and joints. Belt material is light, strong and non-corroding. Angled blades promote self-cleaning. Belt is replaceable, longer length reduces back strain.
1300 for 3-12" diameter, 45" OAL
1301 replacement belt, 45"
1350 for 12-36" diameter, 72"OAL
1351 replacement belt, 72"
